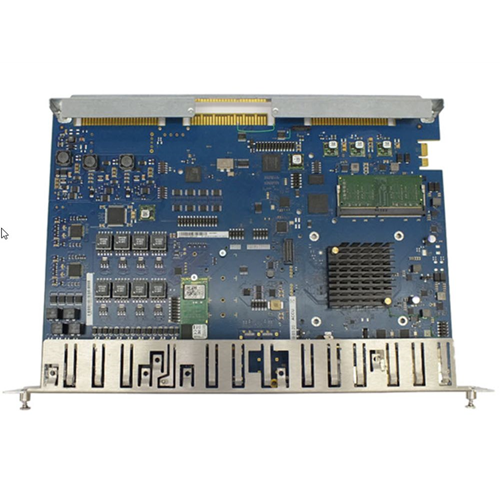

OpenScapeBusinessX3R/ X5R Basic Mainboard OCCMBR

OpenScape Business X3R / X5R Basic Mainboard OCCMBR
Supported from V3R1.x onwards

• 2 Gigabyte LAN connections (customer LAN, service)
• 1 Gigabyte (WAN connection (Internet direct))
• 8 UP0/E subscribers via RJ connectors on the front panel
• 4 analoge subscribers (a/b) via RJ connectors on the front panel
• 1 USB 2.0 port (service)
• 1 USB 2.0 port (USB storage device)
• 2 USB 3.0 port (USB storage device)
• 1 jack socket 3.5mm for music on hold / announcements via analogue audio devices
• 1 connector strip (internal) for M.2 SATA SSD memory card
• 1 connector panel (internal) for optional M.2 NVMe SSD memory card
• 1 connector panel (internal) for optional Voice Channel Module (OCCB)
• 1 connector panel (internal) for optional Actuator / Sensor Module (STRBR)
• 1 connector panel (internal) for optional Clock Module (CMAe)

Without system SW

This mainboard can only be operated with System SW on M.2 SATA SSD card. The System SW on M.2 SATA SSD card is not included in the scope of delivery and must be ordered separately: L30251-U600-G668
